mcr THERM SYSTEM - FOR GRAVITY SMOKE EXHAUST AND AERATION

In the gravitational smoke exhaust system for staircases, which you can find
In "MERCOR" S.A. offer, we have used a number of innovative devices of our own production. They contribute to the protection of life and property while meeting current requirements
and future requirements for thermal insulation of buildings.

The complete staircase smoke removal system proposed by MERCOR consists of:

Executive devices:

smoke exhaust vent mcr ULTRA THERM or mcr PROLIGHT
smoke exhaust/aeration window mcr OSO THERM 75
actuator mcr HCV 500/600 Door Drive (for aeration doors)

Control devices:

control unit mcr SV-ds/SVM
emergency pushbutton mcr BVT
optical smoke sensor
rain-wind sensor mcr AR/AWR
remote control mcr FLEX

Ask for an offer

mcr ULTRA THERM smoke exhaust vent

Function: smoke exhaust, daily ventilation
Dimensions min.: 1000 x 1000 lub 800 x 1200 [mm]
Dimensions max.: 2000 x 3000 [mm]
Design: modular PVC base or folded steel base
Glazing: multi-chamber polycarbonate plates,
acrylic or solid polycarbonate domes, mixed glazing
Control: electric 24 V-/48 V-/230 V~

mcr ULTRA THERM smoke exhaust vent
(with roof access function)

Function: smoke exhaust, daily ventilation, roof access
Dimensions min.: 1000 x 1000 lub 900 x 1200 [mm]
Dimensions max.: 1600 x 2200 (1 actuator)
or 2000 x 2500 [mm] (2 actuators)
Design: modular PVC base or folded steel base
Glazing: multi-chamber polycarbonate plates,
acrylic or solid polycarbonate domes, mixed glazing
Control: electric 24 V-/48 V-/230 V~

mcr PROLIGHT smoke exhaust vent

Function: smoke exhaust, daily ventilation, roof access (variant)
Dimensions min.: 1000 x 1000 [mm]
Dimensions max .: 1950 x 2200 [mm]

Design: steel or aluminum base in standard or overlay design
Glazing: multi-chamber polycarbonate plates
acrylic or solid polycarbonate domes, mixed glazing
Control: electric 24 V- / 230 V~

mcr OSO THERM 75 smoke/aeration exhaust windows

Function: smoke exhaust and daily ventilation
Dimensions min.: 800 x 800 [mm]
Dimensions max.: 2700 x 1300 or 1600 x 2200 [mm]
Design: thermally broken multi-chamber aluminium profiles
Glazing: glazing unit or sandwich panel
Control: elektryczne 24 V-/48 V-/230 V~

mcr SVM exhaust control unit
(mcr SVM 24V-5A / mcr SVM 24-8A)

In accordance with EN12101 - class A (double power supply)
Power supply voltage: 230 V~ / max. 1.5 [A]
Output voltage: 24 V–
No. of outputs: 1 pcs. (1 fire zone / 1 comfort ventilation group)
Max. total load: 5 or 8 [A]
Operation time without main voltage source: 72 h
Dimensions: 238 x 113 x 286 [mm]

(mcr SV-ds 24V-xx-ds / mcr SV-ds 48V-xx-ds)

In accordance with EN12101 - class A (double power supply)
Power supply voltage: 230 V~ / max. 1.5 [A]
Output voltage: 24 V- lub 48 V-
No. of outputs: 2 pcs. (2 fire zones / 2 comfort ventilation groups)
Max. total load: 8 / 24 / 30 / 32 [A]
Operation time without main voltage source: 72 h
Dimensions: 343 x 178 x 450 [mm]

mcr HCV 500/600 Door Drive

Power supply voltage: 24 / 36 / 48 [V]
Power consumption: 1.4 / 1.05 / 0.7 [A]
Protection degree: IP 32
Pushing/pulling force 500 / 500 [N]
Locking pressure 2000 [N]
Opening/closing speed: 10 [mm/s]
Opening angle 90°
Temperature -25 ÷ 75 [°C]

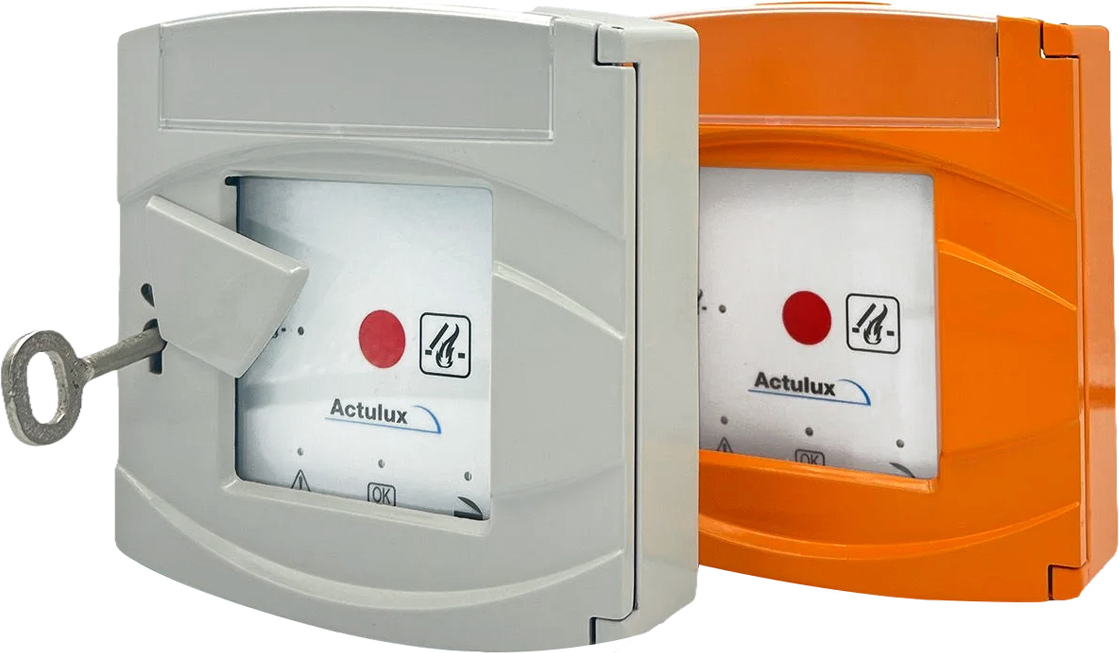

mcr BVT emergency pushbutton

Functions: alarm, reset, sound indicator
LED indication: ’’ok”, “error” (yellow), “alarm activated’’ (red)
Dimensions: 125 x 125 x 36 [mm]
Protection degree: IP 40

OCD optical smoke sensors

operating voltage: 10.8 - 33 V
max. monitoring current: 80 [μA]
alarm current: 22/55< [mA]
operating temperature range: -10 ÷ 50 [°C]
max. relative humidity: 0 – 95 [%] without condensation and icing
dimensions of sensor, incl. socket: Ø100 x 46 [mm]

LT ventilation push button switch

Functions: opening and closing ventilation vents or windows
casing color: white
Dimensions: 80 x 80 x 55 [mm]

remote control FLEX

Functions: remote activation of ventilation functions
in SVM air-handling units
Range: approx. 400 [m]
Power supply: battery 12 12V LRV08L
Number of supported remots by the control panel: up to 20 [pcs.]

AR / AWR wind & rain sensor

Power supply: 20 ÷ 35 V–, 18 ÷ 35 V~, 200 ÷ 250 V~
Output contact: NO-NC 250 V~ / 2A, 24 V- / 2A
Dimensions: 80 x 160 x 55 [mm]
Protection class: IP 65

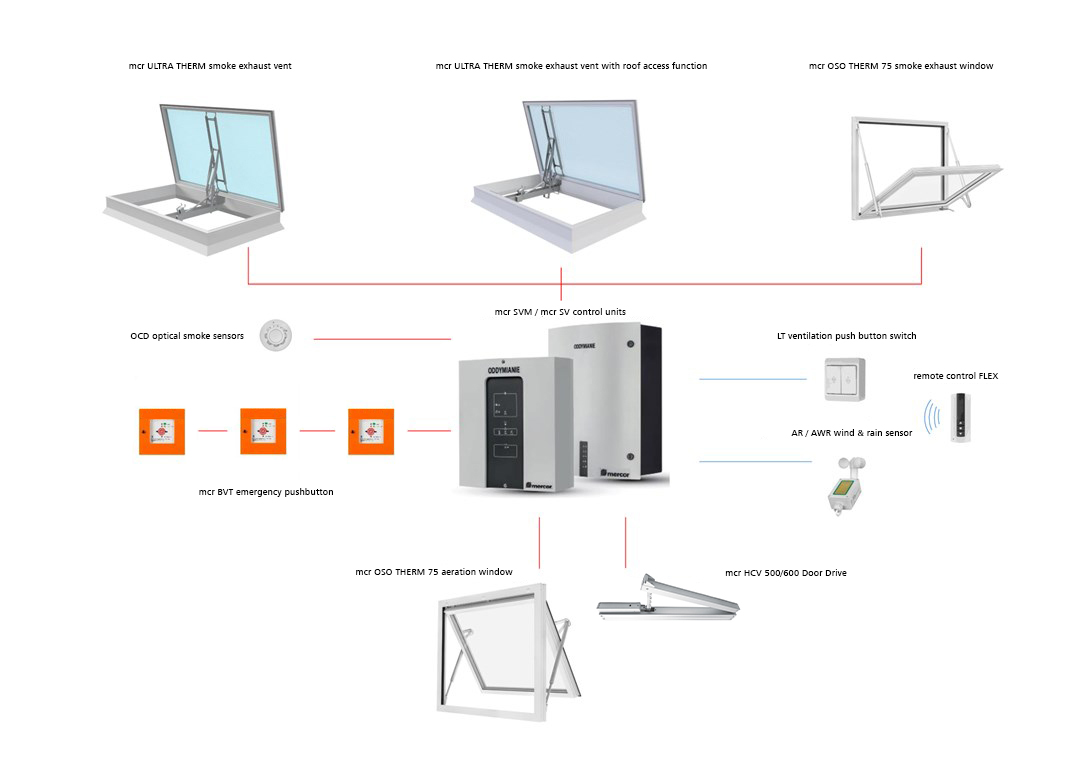

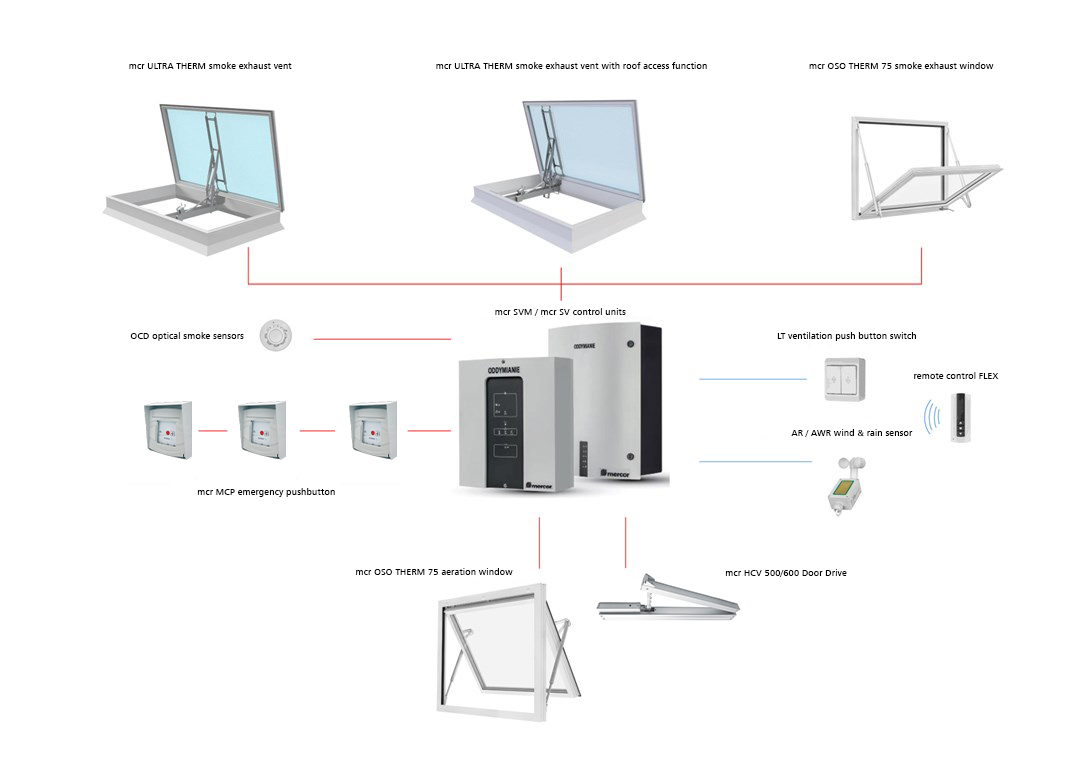

Example diagram of an electrical control system for smoke exhaust and gravity aeration
