mcr PROLIGHT SMOKE VENT

DESCRIPTION

  • wide scope of vents sizes:
    –  Type C (square): 100 x 100 cm ÷ 200 x 200 cm
    –  Type E (rectangular): 100 x 120 cm ÷ 200 x 250 cm
    –  Type NG-A (skew base): 100 x 100 cm ÷ 200 x 300 cm
    –  Type DVP/DVPS (double leaf): 120 x 250 cm ÷ 300 x 300 cm
  • optional wind – and/or inlet deflector for better aerodynamic performance
  • vents are delivered to site construction as a complete product, ready to install
  • RAL palette colour selection for vent elements

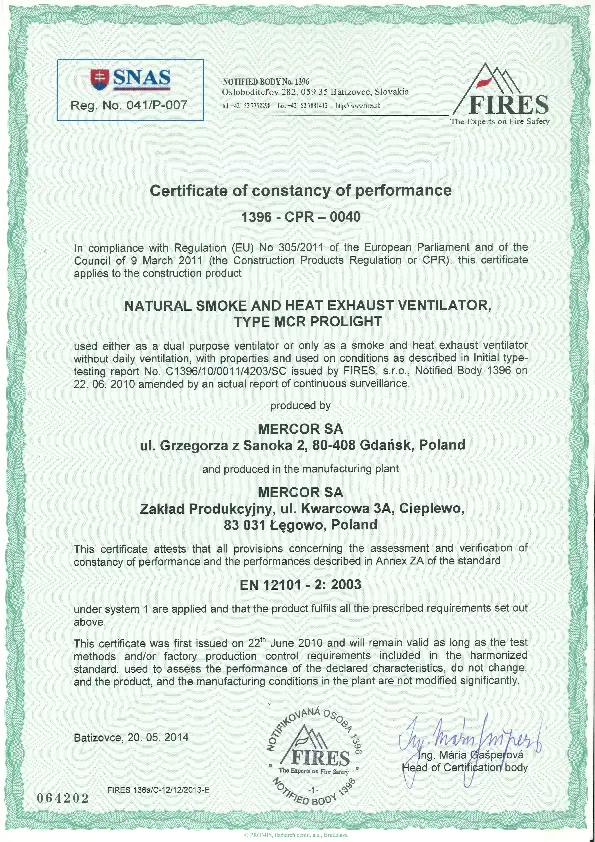

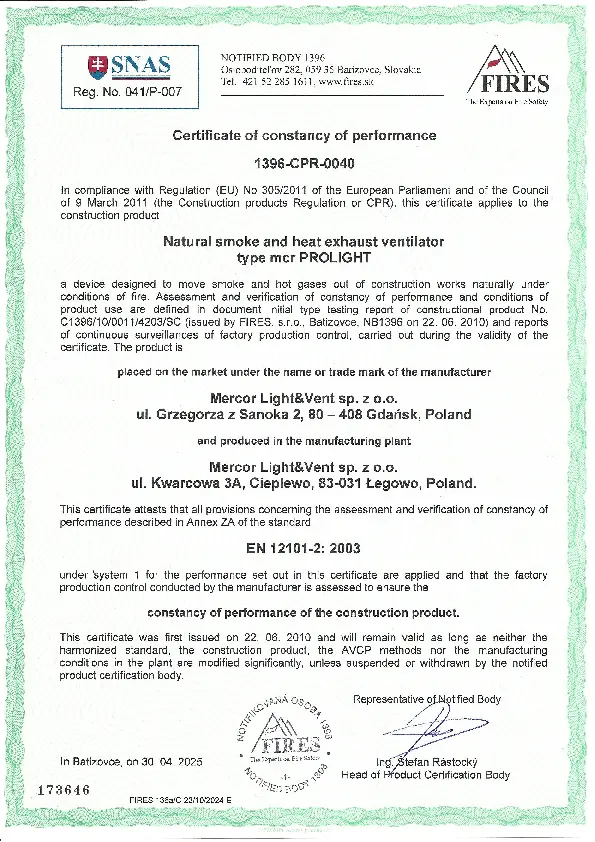

  • product certified according to PN EN 12101-2, CE marked

DESIGN
Base

  • type: straight, skew, overlay
  • height: standard 30 cm - 50 cm (straight);
    20 cm - 70 cm (C/E/DVP), 30 cm - 70cm (NG-A/DVPS) (additional option)
  • material: steel, aluminium
  • thermal insulation with mineral wool or PIR panel
  • possible to apply on existing plinth

Filling

  • multi-chamber polycarbonate
  • domes: acrylic or solid polycarbonate
  • ALU sandwich panel
  • multivariable single and multi-layer filling

Control system

  • moke exhaust: electric (24 V-), pneumatic, mechanic (gas springs)
  • ventilation: electric (230 V~), pneumatic


Ask for an offer
Select the flap in the program

Information

 Smoke exhaust



Exhaust smoke, combustion gases and heat energy from enclosed spaces (production floors, storage spaces, public facilities, etc.) to the outside of builings, in order to protect human lives and property.
 Lighting



Effective method of increasing natural light intensity in rooms and contribute to reducing total cost of energy.
 Ventilation



Provides air supply and daily ventilation.
 Additional elements



» wind deflectors
» inlet deflectors
» safety net
» limit switch
» anti-burglar grid
 Heat transfer


product allows to achieve high heat transfer

Urc ≥ 1,3 W/m²K.
 Application



Wide scope of shapes and sizes enable
installation on warehouses, public
services buildings, shopping malls,
commercial and sport objects.
