mcr PROLIGHT SMOKE VENTS WITH ROOF ACCESS FUNCTION

DESCRIPTION

  • wide scope of vents sizes:
    –  Type C (square): 100 x 100 ÷ 200 x 200 cm*
    –  Type E (rectangular): 100 x 120 ÷ 200 x 250 cm*
  • vents are delivered to site construction as a complete product, ready to install
  • RAL palette colour selection for vent elements

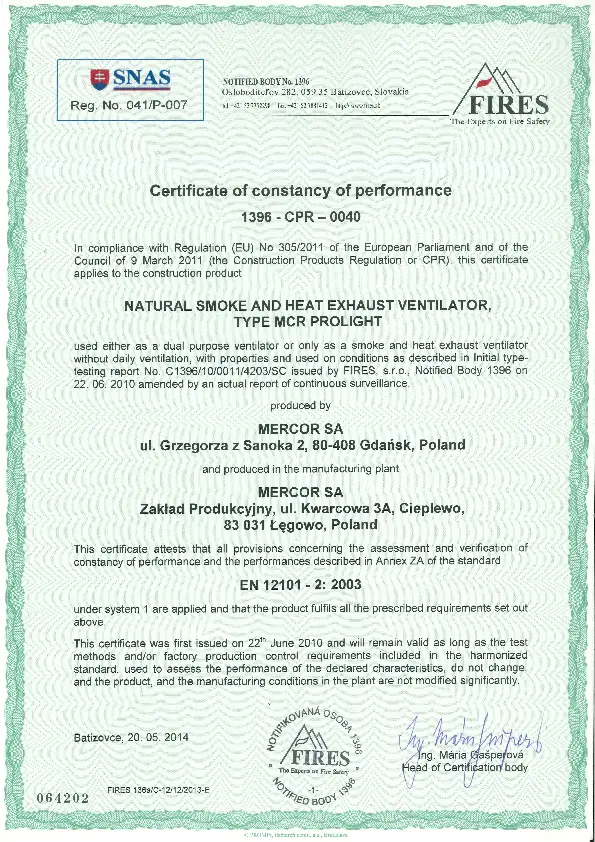

  • product certified according to PN EN 12101-2, CE marked

(*) The selection of vents with a hatch function should
      be consulted with the sales department*

DESIGN
Base

  • type: straight, skew, overlay
  • height: standard   30 cm - 50 cm (straight); 20 cm - 70 cm (additional option)
  • material: steel, aluminium
  • thermal insulation with mineral wool or PIR panel
  • possible to apply on existing plinth

Filling

  • multi-chamber polycarbonate
  • domes: acrylic or solid polycarbonate
  • ALU sandwich panel
  • multivariable single and multi-layer filling

Control system

  • smoke exhaust: electric (24 V-), pneumatic, mechanic (gas springs)
  • ventilation: electric (230 V~), pneumatic
Ask for an offer

Information

 Smoke exhaust



Exhaust smoke, combustion gases and heat energy from enclosed spaces (production floors, storage spaces, public facilities, etc.) to the outside of builings, in order to protect human lives and property.
 Lighting



Effective method of increasing natural light intensity in rooms and contribute to reducing total cost of energy.
 Ventilation



Provides air supply and daily ventilation.
 Additional elements



»  limit switch
 Heat transfer


Product allows to achieve high heat transfer:

Urc ≥ 1,3 W/m²K.
 Roof access



Opening mechanism enables easy roof access.
