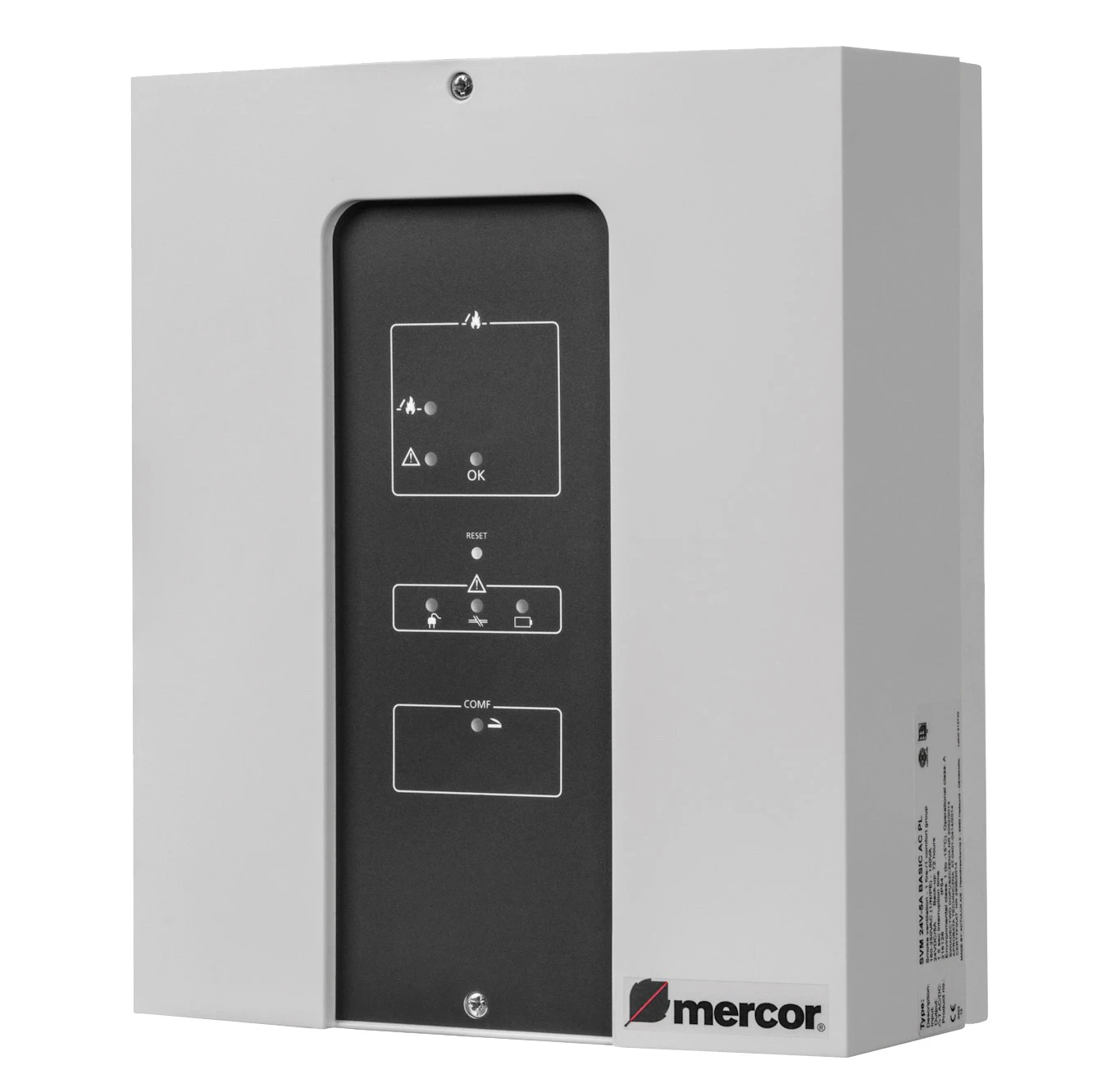

mcr SVM/SVM EI - CONTROL UNIT
mcr SVM control unit is used to activate Mercor Light&Vent sp. z o.o. smoke exhaust devices by alarm signal from various sources. It allows to operate one fire zone and one comfort ventilation group. The control unit is supplied from 230 V~ and provides 24 V- output. Batteries allow for a 72 h stand-by, and at least a single launch of vents in that time.
- Classification in accordance with EN 12101-10 (CE Certificate)
The control unit allows for:
- remote alarm activation from Fire Alarm System,
- alarm activation by mcr BVT ► fire alarm buttons,
- automatic alarm activation from smoke detectors ►
- comfort ventilation through LT manual buttons ►
- comfort ventilation through mcr FLEX remote control ► (option)
- transfer of all information to another mcr SV-ds ►
or mcr SVM control unit through relay bus - automatic closing of vents opened for ventilation in case of rain or strong wind,
in response to a signal from AR/AWR wind & rain sensor ► - displaying the unit status through LEDs on its face plate and buzzer
- control unit SVM with EI option (SVM El) control panel is in addition equipped with:
The Fireman Priority ► override switch input, which allows for the Fireman to control the panel regardless of sensor inputs
Information
| TECHNICAL SPECIFICATIONS | SVM 24 V - 5 A | SVM 24 V - 8 A | |
|---|---|---|---|
| Power supply |
230 V~ / max. 1.2 A |
230 V~ / max. 1.7 A | |
| Output supply |
24 ÷ 28 V- |
24 ÷ 28 V- | |
| Motor outputs | 1 pcs. (line detection: 1-4 lines) | 1 pcs. (line detection: 1-4 lines) | |
| Max. load |
5 A |
8 A | |
| Batteries |
2 szt. 12 V- / 7.2 Ah |
2 szt. 12 V- / 7.2 Ah | |
| Dimensions (W x D x H) |
238 x 113 x 286 mm |
238 x 113 x 286 mm | |
| Fire groups | 1 pcs. with line detect. / Max. power consumption for fire switches (LED + buzzer) = 17.6 mA = approx. 8 fire switches |
||
| Comfort groups | 1 pcs. unlimited number of comfort switches | ||
| Detector (smoke/heat) input | pcs. with line detection / Max. power consumption for detectors = 2.2 mA = approx. 22 pcs. detectors. Trigger point 30 mA |
||
| Weather sensor input/ close all | Yes | ||
| Bus communicatio | Yes - connection of 2-35 pcs. control panels - line detection | ||
