mcr OSO THERM 75 SMOKE EXHAUST WINDOWS
DESCRIPTION
- smoke exhaust and ventilation window types:
– top hung opening outward
– top hung opening inward
– bottom hung opening outward
– bottom hung opening inward - smoke exhaust, ventilation, and air supply devices
- mounted in vertical partitions (wall, enclosure, etc.)
- can be incorporated into post-and-beam facade systems available on the market
- wide scope of window sizes:
– vertical set-up: W x H) 80 x 80 cm ÷ 160 x 220 cm
– horizontal set-up: (W x H) 80 x 80 cm ÷ 270 x 130 cm - window opening angle: 10º ÷ 90º
- wide selection of RAL palette colours and decorative woodgrain coating

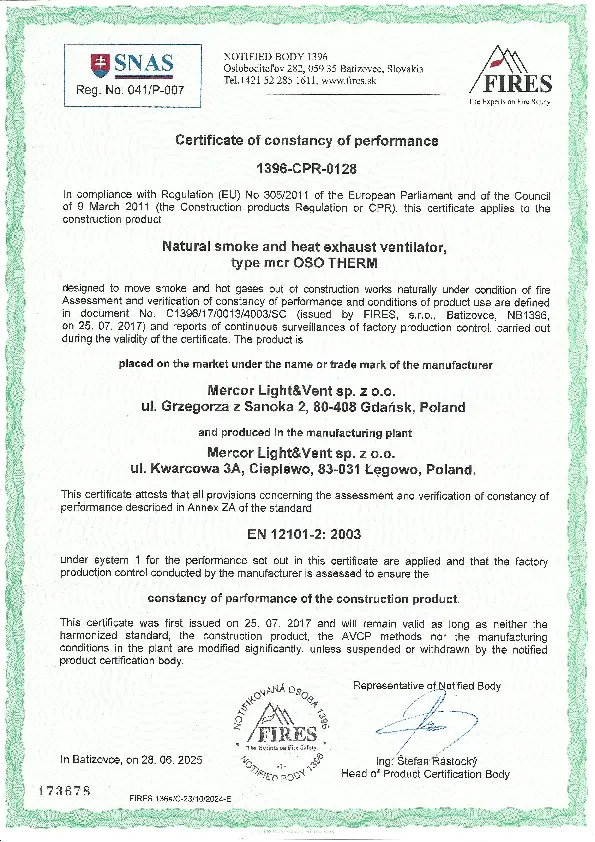

- classification according to the Certificate of Constancy of Performance
No. 1396-CPR-0128 (according to EN 12101-2)
DESIGN
- window with multi-chamber aluminum profiles
- leaf and frame groove system with covering profile
for easy installation of cables and actuators consoles
Filling
- triple glass
- double glass
- ALU sandwich panel
Control system
smoke exhaust, ventilation, aeration:
- electric 24 V- / 48 V- (actuator: spindle G / S, chain HCV),
- electric 230 V~ (chain actuator HCVA).
Information
|
|
|
|
|
|
Smoke exhaust
Lighting
Ventilation
Non-standard options
Heat transfer
Application
