mcr PROLIGHT CONTINUOUS ROOFLIGHTS

DESCRIPTION

continous rooflights with span up to 6,0 m
bottom part of base has a circumferential flange of standard width 70 mm,
for installing on the roof structure
skylight base stiffened with bracing at 1500 mm or 3000 mm
wide scope of smoke vent sizes:
– single-leaf: 100 x 100 cm ÷ 200 x 250 cm
– double-leaf: 100 x 100 cm ÷ 250 x 250 cm
optional wind - and/or inlet deflector for better aerodynamic performance
products are delivered to construction site in elements and assemble in two steps:
– first step - base
– second step - top section
RAL palette colour selection for elements

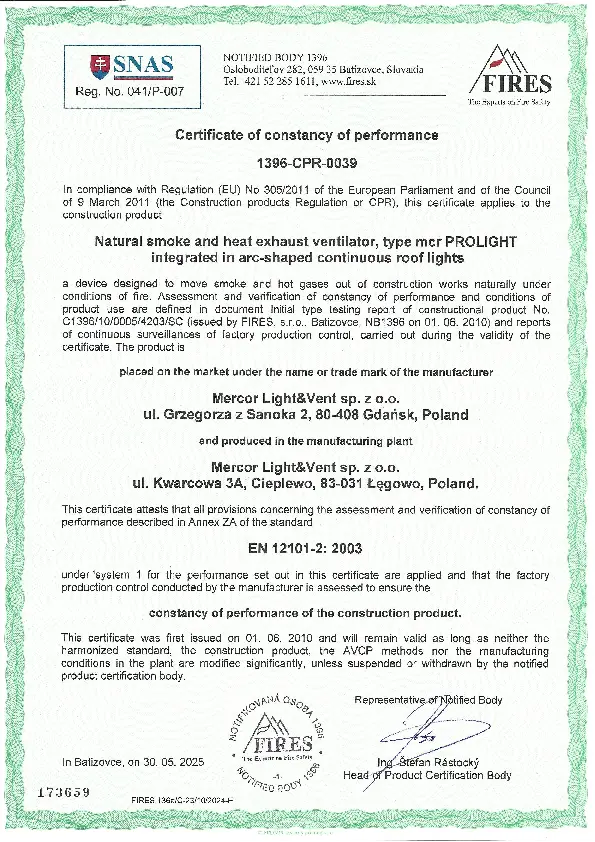

CE marked rooflights according to EN 14963
fire performance for external fire, class B_ROOF(t1) in accordance with PN-EN 13501-5

DESIGN
Base

type: straight, ridge, slope, overlay, broken at the ridge
height: 30 cm - 70 cm
material: PVC, steel, aluminum
prepared insulation of 50 mm thickness (possible modification)
possible to apply on existing plinth

Filling

multi-chamber polycarbonate
multivariable single and multi-layer filling

Control system

smoke exhaust: electric (24 V-), pneumatic
ventilation: electric (24 V- / 230 V~)

Ask for an offer

Other continuous rooflight structures (custom solutions)

TRIANGULAR SHAPED ROOFLIGHTS

PYRAMID SKYLIGHT

DOME SKYLIGHT

Smoke exhaust

Exhaust smoke, combustion gases and heat energy from enclosed spaces (production floors, storage spaces, public facilities, etc.) to the outside of builings, in order to protect human lives and property.

Lighting

Effective method of increasing natural light intensity in rooms and contribute to reducing total cost of energy.

Ventilation

Provides air supply and daily ventilation.

Additional elements

» anti-burglar grid
» safety net
» limit switch

Heat transfer

Product allows to achieve high heat transfer:

Urc ≥ 0,95 W/m²K.

Application

Wide scope of shapes and sizes enable
installation on warehouses, public
services buildings, shopping malls,
commercial and sport objects.

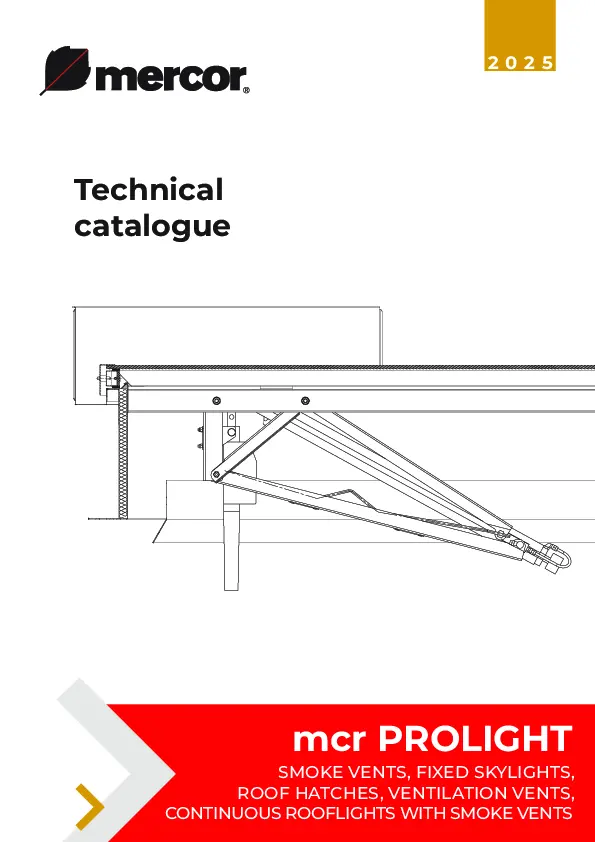

Technical Catalogue

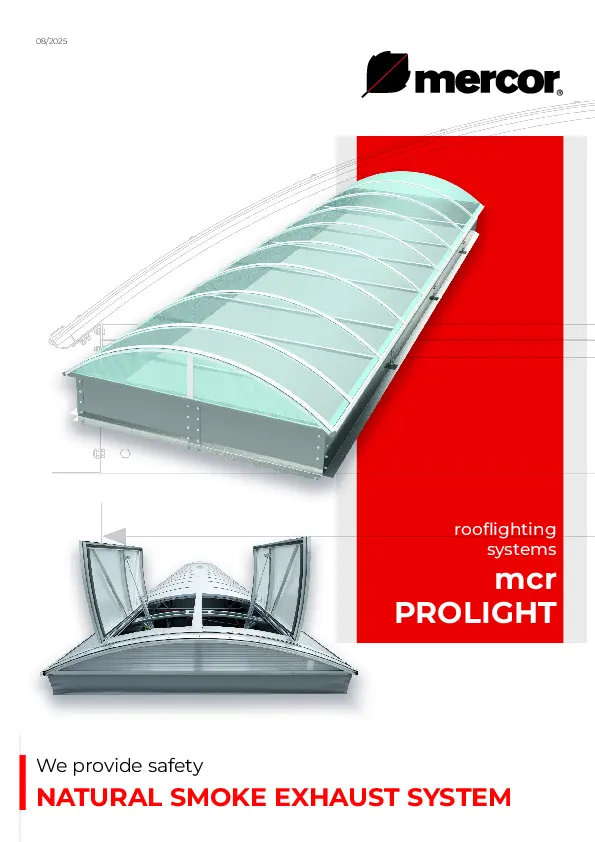

Product folder

EPD ITB | Environmental product declaration

Ask for an offer
