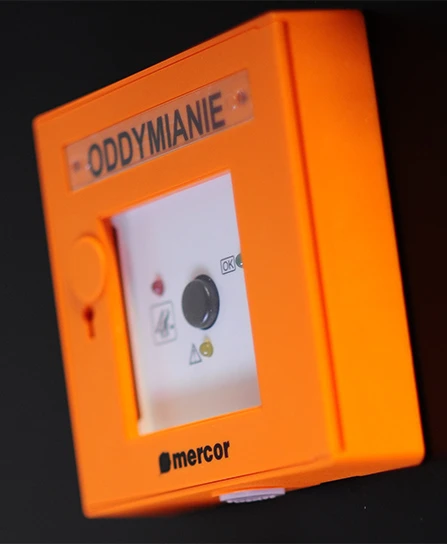

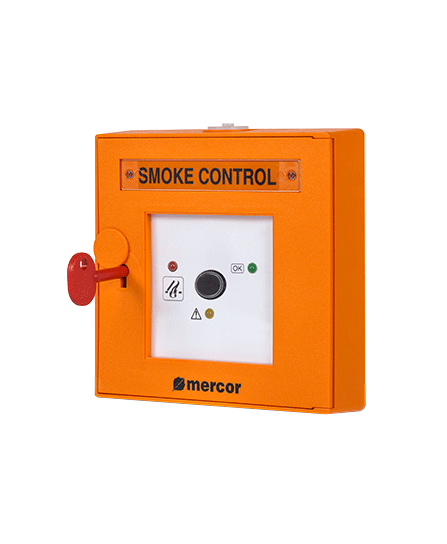

mcr RPO-1, mcr RPO-1a MANUAL DESMOKING BUTTONS
mcr RPO fire alarm button is used in smoke exhaust systems for manual alarm triggering and for indication of operating status of the smoke exhaust unit.
The button includes three indication diodes:
» red – ALARM,
» yellow – FAIL,
» green – OK.
The diodes are connected directly and independently to terminal strip, which ensures versatility of mcr RPO-1 fire alarm button.

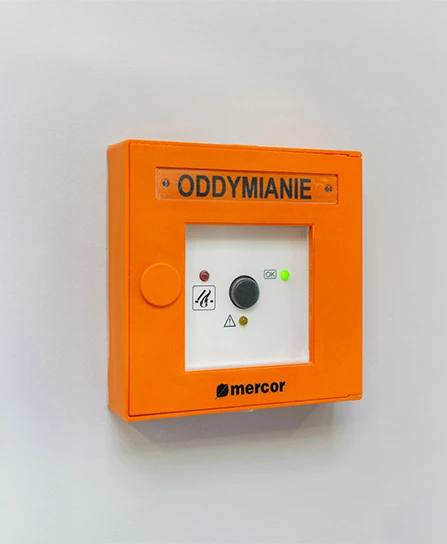

The buttons are intended for indoor installation The button shall be connected using a cable compliant with the applicable local regulations and installation requirements.
Information
| The standard button is intended for use with Mercor smoke exhaust control units |
The standard button is intended for use with Actulux smoke exhaust control units |
|||
| mcr 0204 | mcr 9705 | mcr SVM | mcr SV-ds | |
|
|
|
|
|
|
| more | more | more | more | |
| PARAMETR | VALUE | ||
|---|---|---|---|
| mcr RPO-1 | mcr RPO-1 a | ||
| compatible control units | mcr 9705, mcr 0204 | mcr SVM, mcr SV-ds | |
| alarm button parameters | 24 V-, max 100 mA | ||
| operating temperature range | -5°C ÷ 40°C | ||
| casing protection rating | IP 3X | ||
| dimensions (height x width x depth) | 135 x 135 x 33 mm | ||
| cable cross-section range | 0.5 ÷ 0.75 mm2 | ||
| min. number of wires in cable running to unit | 7 | 6 | |
| activation method | Indirect (type B) | ||
| type | I (button with indication) | ||
| climatic class | I | ||
| casing color | orange | ||
