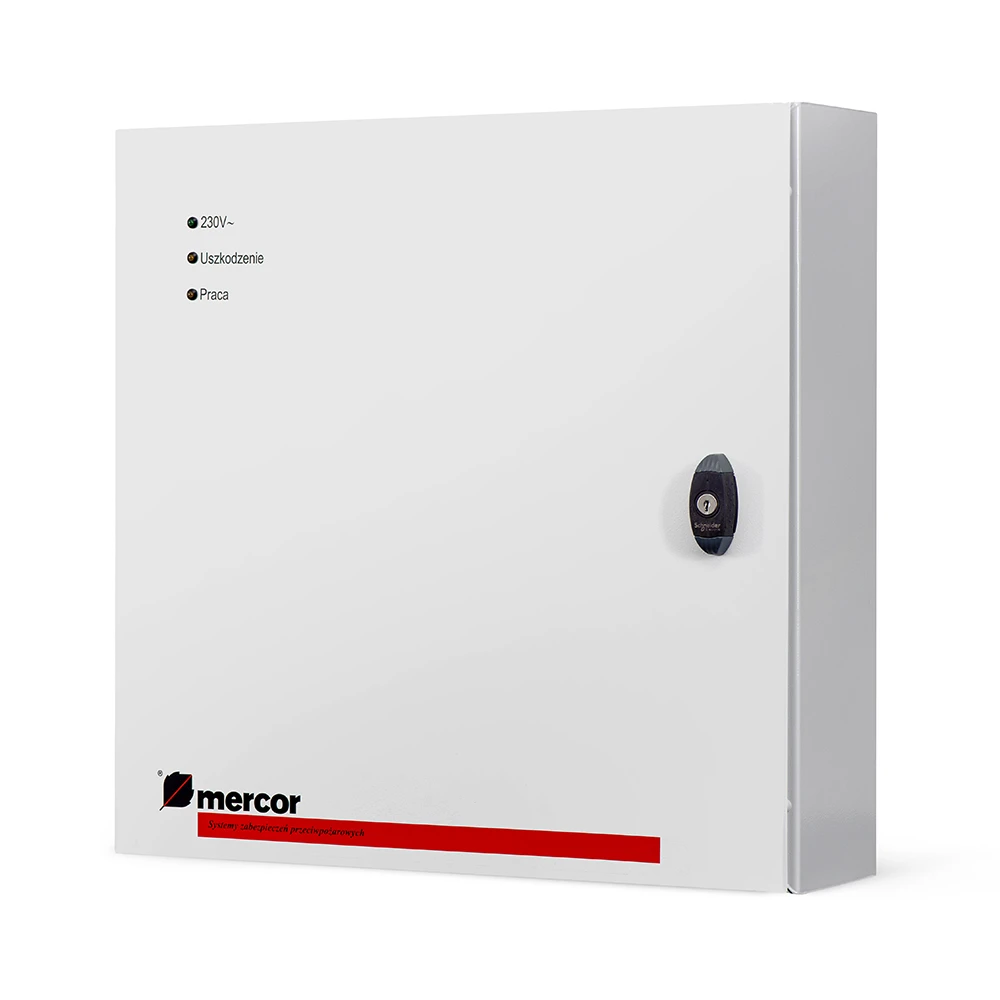

mcr R2324-24V, mcr R2348-24V, mcr R2324-48V EXTENSION MODULES

The module is controlled by a 24 V- or 48 V- signal from the mcr 9705 ►
or mcr 0204 ► smoke exhaust control panels (from the actuator line output).

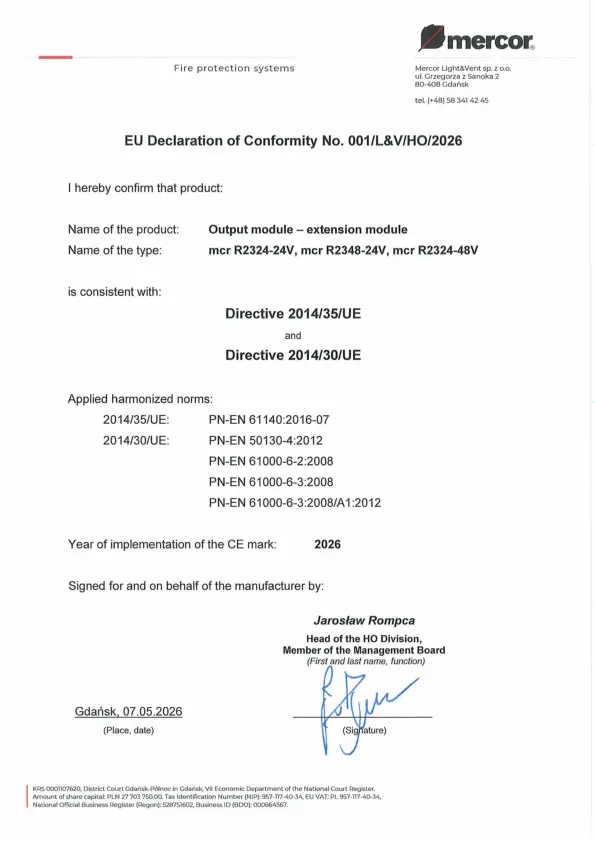

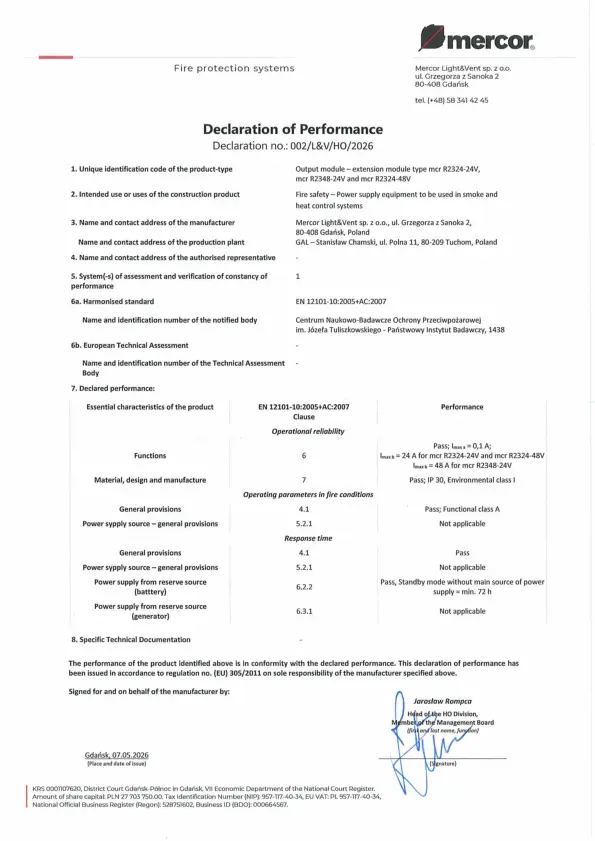

  • Classification in accordance with EN 12101-10 (CE mark).

The device, when connected to a smoke exhaust control panel, provides monitoring of faults on all actuator lines connected to it. The mcr R23xx-xxV module is equipped with two power supply sources for the connected devices: the primary mains supply and a backup battery supply, which is switched on automatically in the event of mains power failure. The battery backup ensures 72 hours of standby operation and at least one opening cycle of the vents during this period. The battery recharge time after complete discharge is up to 24 hours.


The modules are made in 8 variants, of different
carrying capacity and number of output lines:

mcr R2324-24V

  • R2324-24V-1: 1 output line 24 V- 24 A
  • R2324-24V-2: 2 output lines 24 V- each 12 A
  • R2324-24V-K: 1÷10 output line 24V-, Σ=24 A, (for curtains)

mcr R2348-24V

  • R2348-24V-2: 2 output lines 24 V- each 24 A
  • R2348-24V-4: 4 output lines 24 V- each 12 A
  • R2348-24V-K: 1÷10 output lines 24 V-, Σ=48 A, (for curtains)

mcr R2324-48V

  • R2324-48V-1: 1 output line 48 V- 24 A
  • R2324-48V-2: 2 output lines 48 V- each 12 A


Ask for an offer

Information


More stable
output voltage
Available in two voltage versions:
24 V- and 48 V-
Additional output on the main board for transmitting the alarm signal to the next module



PARAMETER VALUE
type mcr R2324 – 24 V- mcr R2348 – 24 V- mcr R2324 – 48 V-
variant 2324-24V-1 2324-24V-2 2324-24V-K
for mcr PROSMOKE
CE curtains		 2348-24V-2 2348-24V-4 2348-24V-K
for mcr PROSMOKE
CE curtains		 2324-48V-1 2324-48V-2
number of output lines
(actuators) and line
carrying capacity		 1 x 24 A 2 x 12 A 1 ÷ 10  output lines 1 x 24 A 2 x 24 A 4 x 12 A 1 ÷ 10  output lines 1 x 48 A 1 x 24 A 2 x 12 A
power supply voltage 230 V~, 50 Hz
max. mains power consumption 750 VA 1500 VA
output voltage 24 V- 48 V-
operating temperature range -5 °C ÷ 40°C
dimensions
(height x width x depth)		 600 x 600 x 200 mm
casing protection rating IP 30
cables output from the back or top of casing
