mcr PROSMOKE ONE AUTOMATIC SMOKE CURTAINS

DESCRIPTION

  • automatic smoke curtains FS and C type are responsible for separation of smoke zones within the building, and stop smoke from spreading within passages, on staircases
    or escalators
  • automatic smoke curtains are used in buildings where the visual aspect
    of building plays an important role
  • fire resistance parameters:
    –      automatic curtains FS: D30 / D180 / DH30
    –  automatic curtains C: D30/ DH30,
  • vast range of curtain mounting to ceiling lintel or object steel construction
  • automatic curtain as one folded or modular device can be connected under
    an angle or contain evacuation entrance
  • painting steel components with chosen RAL palette colour
  • classification (as per EN 12101) according to:
    – Certificate of constancy of performance WE 1396-CPR-0132 (FS curtains)
    – Certificate of constancy of performance WE: 1396-CPR-0133 (C curtains)
    –      CE certificate

DESIGN
Base

  • mcr PROSMOKE ONE – automatic smoke curtain

Automatic curtain - structure

  • steel sheet casing with roller
  • incombustible fabric
  • motor
  • bottom balast
  • masking element


Ask for an offer

Information

  Separation of smoke zones



Separated smoke zones stop the spread of smoke in passageways, staircases, stairs and hold the smoke in a room adjacent to the evacuation route. Correct arrangement of smoke curtains in the facility allows the smoke to be directed towards other system devices - smoke vents.
 Smoke flow optimisation
       and gas redirection into smoke vents



Proper placement of smoke curtains in a building makes it possible
to direct the smoke towards other elements of the system, i.e. smoke vents.
PARAMETERS ONE FS smoke curtain automatic
– gravitational drop		 ONE C smoke curtain automatic
– extended by motor
Classification (as per Certificate of Conformity according to EN 12101-1) Certificate of constancy of performance
1396-CPR-0132		 Certificate of constancy of performance
1396-CPR-0133
Curtain type (as per standard EN 12101-1) ASB1 / ASB3 ASB2 / ASB4
Fire resistance class D30 / D180 / DH30
FIRES-JR0-142-22		 D30/ DH30
FIRES-JR0-142-22
Reliability 1000 cycles 1000 cycles
Max. barrier permeability tested at ambient temperature 9,4 m3/h*m2
Material smoke-tight fabric
Max shafts No. 12 10
Minimum height 0.5 m
Minimum length 2 m 0.8 m
Maximum height 6.5 m
Maximum length 5.4 m
Masking 60 mm
or 80 mm (only for curtain's casing mounted above the suspended ceiling)
Angle connections NO
Max power consumption ( 24 V- ) 0.25 A (brake) 4 A (motor)
Max power consumption ( 230 V~ ) 270 W (motor) -
Control panel mcr 9705-5A / mcr 0204 mcr 9705-5A/-8A
Extension module (optional) - mcr R0424/-48 –Kx

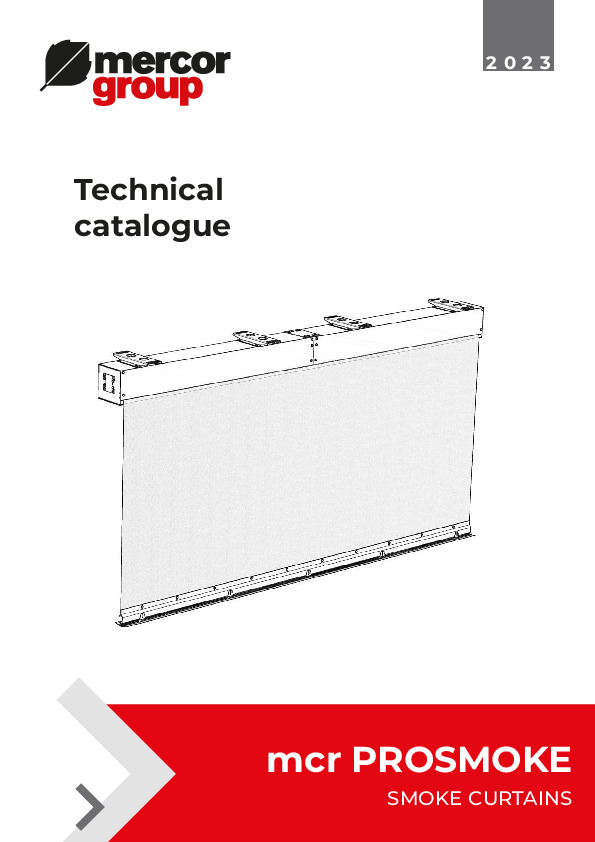

Technical Catalogue
CPR | EN - PROSMOKE ONE FS (Mercor Light&Vent)
CPR | EN - PROSMOKE ONE FS (Mercor S.A.)
CPR | EN - PROSMOKE ONE C (Mercor Light&Vent)
CPR | EN - PROSMOKE ONE C (Mercor Mercor S.A.)
