mcr PROROOF ROOF HATCH

DESCRIPTION

wide scope of hatches sizes:
– Type ST: 75 x 150 cm ÷ 75 x 330 cm
– Type LD: 60 x 60 cm ÷ 150 x 140 cm
device designed for:
– upward load UL=1500 Pa
– downward load DL=1000 Pa
opening angle (Type ST): 90º, (Type LD): 70º
blockade of the leaf in fully open position
folding, possible to use in hatches
LD type and in some sizes of ST type
leaf made of high-strength steel profiles
water tightness guaranteed by special EPDM gasket
locking from inside and outside (2 keys in standard)
device elements painted to any RAL color

More

DESIGN
Base

type: straight
material: aluminum sheet, PIR 60 mm insulation

Filling

structured polycarbonate plates
solid acrylic / polycarbonate domes
solid glazing

Control system

gas springs (hatch ST type equipped with an integrated blockage of the leaf)

Ask for an offer

Lighting

Effective method of increasing natural light intensity in rooms and contribute to reducing total cost of energy.

Heat transfer

Product allows to achieve high heat transfer:

Urc ≥ 0,36 W/m²K.

Roof access

Opening mechanism enables easy roof access.

Additional elements

» adaptor type of base
» PVC planking
» protection net 1200 J

Application

mcr PROROOF LD and ST hatches were designed to allow easy and safe roof access. Additionally the ST type provides convenient movement of large-scale packages up and down from the roof. Both mcr PROROOF LD and mcr PROROOF ST hatches can provide light inside the building thank to the optional translucent glazing.

mcr PROROOF LD

mcr PROROOF ST

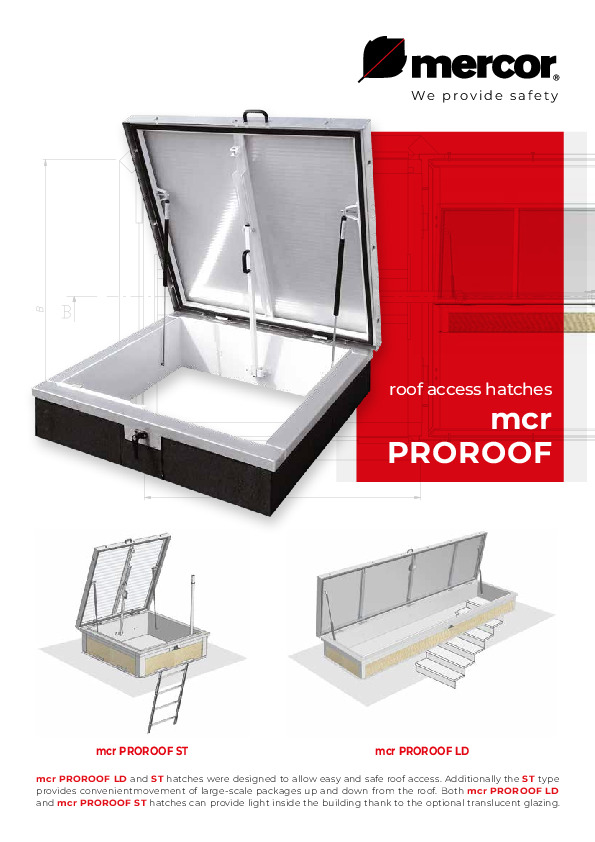

Product folder
