mcr PROLIGHT CONTINUOUS ROOFLIGHTS WITH INTEGRATED SMOKE VENTS
DESCRIPTION
- continuous rooflights with span up to 6.0 m
- bottom part of base has a circumferential flange of standard width 70 mm,
for installing on the roof structure - skylight base stiffened with bracing at 1500 mm or 3000 mm
- wide scope of smoke vent sizes:
– single-leaf: 100 x 100 cm ÷ 200 x 250 cm
– double-leaf: 100 x 100 cm ÷ 250 x 250 cm - optional wind - and/or inlet deflector for better aerodynamic performance
- products are delivered to construction site in elements and assemble in two steps:
– first step - base
– second step - top section - RAL palette colour selection for elements

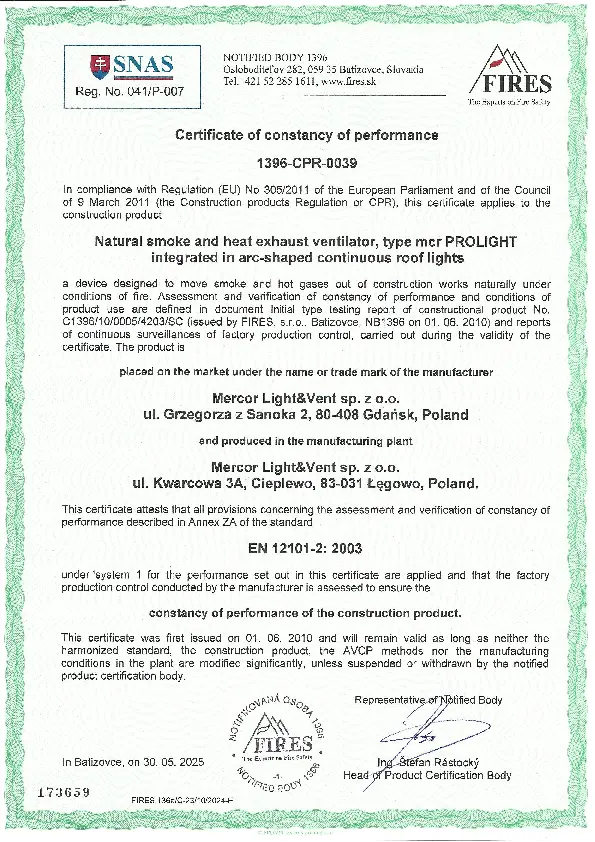

- CE marked rooflights according to EN 14963
- fire performance for external fire, class BROOF(t1) in accordance with PN-EN 13501-5
DESIGN
Base
- type: straight, ridge, slope, overlay, broken at the ridge
- height: 30 cm - 70 cm
- material: PVC, steel, aluminum
- prepared insulation of 50 mm thickness (possible modification)
- possible to apply on existing plinth
Filling
- multi-chamber polycarbonate
- multivariable single and multi-layer filling
Control system
- smoke exhaust: electric (24 V-), pneumatic
- ventilation: electric (24 V- / 230 V~)
