mcr ULTRA THERM VENTILATION VENTS

DESCRIPTION

wide scope of vents sizes:
– Type C (square): 80 x 80 cm ÷ 200 x 200 cm
– Type E (rectangular): 80 x 120 cm ÷ 200 x 300 cm
– Type NG-A (skew base): 80 x 80 cm ÷ 200 x 200 cm
vents are delivered to site construction as a complete product, ready to install
RAL palette colour selection for vent elements
product certified according to PN-EN 1873

More

DESIGN
Podstawa

type: straight, skew
height: standard 30 cm - 50 cm (straight); 25 cm - 70 (additional option)
material: steel, aluminium, PVC
high insulation of PVC profile or galvanized steel sheet with a thickness of 1.25 mm suitable for installation of thermal insulation with a thickness of 50 mm
possible to apply on existing plinth

Filling

multi-chamber polycarbonate
domes: acrylic or solid polycarbonate
ALU sandwich panel
multivariable single and multi-layer filling

Control system

ventilation: electric (230 V~)

Ask for an offer

Lighting

Effective method of increasing natural light intensity in rooms and contribute to reducing total cost of energy.

Ventilation

Provides air supply and daily ventilation.

Application

Wide scope of shapes and sizes enable
installation on warehouses, public
services buildings, shopping malls,
commercial and sport objects.

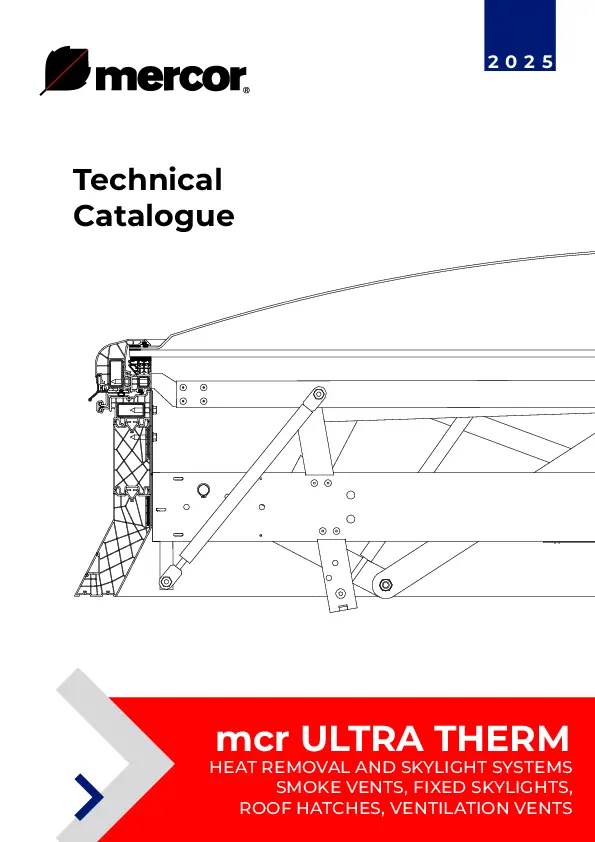

Technical Catalogue

EPD ITB | Environmental product declaration

OMM

Ask for an offer
