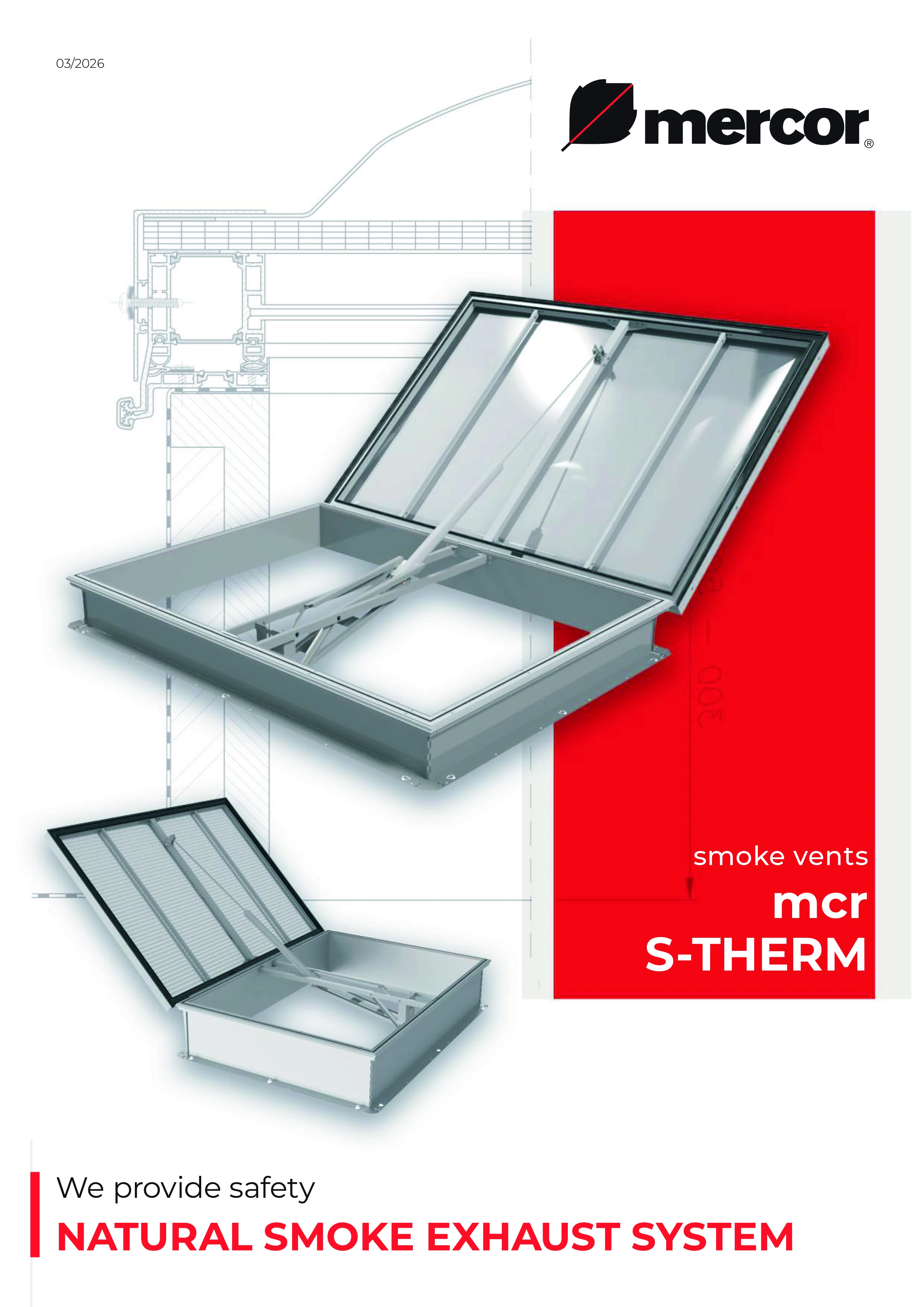

mcr S-THERM SMOKE VENTS

DESCRIPTION

  • no thermal bridges, reduction of water vapour condensation
  • high aesthetics, use of extruded aluminum profiles, wooden base option
  •  modular design enables work ergonomics during assembly and transport
  •  wide scope of vents sizes:
    –  Type C (square): 100 x 100 cm ÷ 180 x 180 cm
    –  Type E (rectangular): 150 x 250 cm ÷ 180 x 250 cm
    –  Type NG-A (skew base): 110 x 110 ÷ 190 x 260 cm
  • optional wind - and/or inlet deflector for better aerodynamic performance
  • simple replacement of vent elements - filling, thickness, type and colour change
  • RAL palette colour selection for vent elements

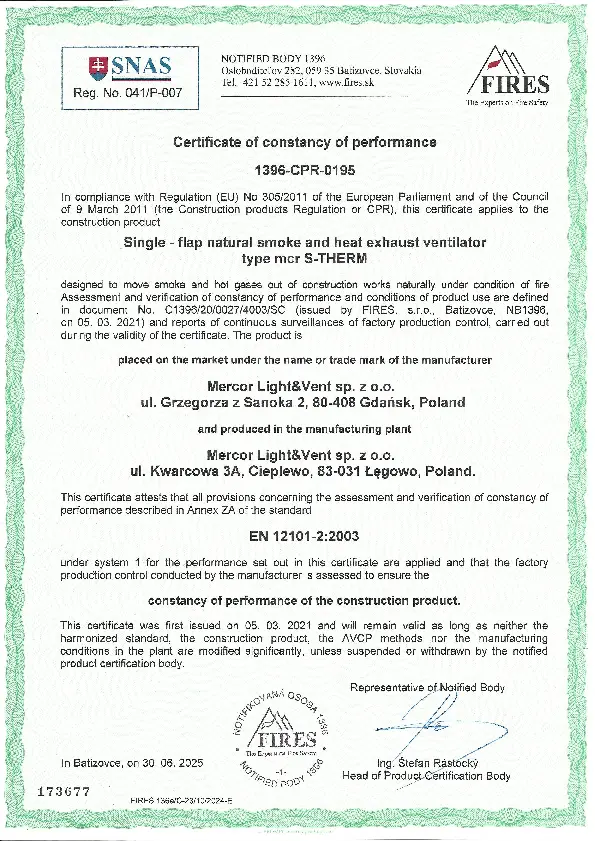

  • product certified according to PN EN 12101-2, CE marked

DESIGN
Base

  • type: straight, skew
  • height: 20 cm - 70 cm
  • material: steel
  • prepared for insulation of 50 mm thickness
  • delivered in assembly components
  • possible to apply on existing plinth


Filling

  • multi-chamber polycarbonate
  • domes: acrylic or solid polycarbonate
  • ALU sandwich panel
  • multivariable single and multi-layer filling


Control system

  • smoke exhaust: electric (24 V-), pneumatic
  • ventilation: electric (230 V~), pneumatic
Ask for an offer

Information

 Smoke exhaust



Exhaust smoke, combustion gases and heat energy from enclosed spaces (production floors, storage spaces, public facilities, etc.) to the outside of builings, in order to protect human lives and property.
 Lighting



Effective method of increasing natural light intensity in rooms and contribute to reducing total cost of energy.
 Ventilation



Provides air supply and daily ventilation.
 Additional elements



» wind deflectors (C, E)
» inlet deflectors
» safety net
» limit switch
 Heat transfer


Product allows to achieve high heat transfer:

Urc ≥ 0,9 W/m²K.
 Application



Wide scope of shapes and sizes enable
installation on warehouses, public
services buildings, shopping malls,
commercial and sport objects.
