mcr PROSMOKE FIXED SMOKE CURTAINS

DESCRIPTION

  • fixed S type smoke curtains are responsible for separation
    of smoke zones under the ceiling of the building
  • they are mainly used in large-area buildings, such as warehouses, production and sports halls or malls, where the use of light curtains of large size and guaranteed resistance to high temperature is necessary
  • fire resistance parameters: D180/DH60 (fabric)
  • vast range of curtain mounting to ceiling lintel or object construction
  • smoke-tight fabric made of glass fibre double-coated with polyurethane
  • bottom balast made of steel elements of maximum length 3 m
  • painting steel components with chosen RAL palette colour
  • Certificate of constancy of performance CE 1396-CPR-0022 as per EN 12101-1



DESIGN
Base

  • mcr PROSMOKE S – fixed fabric curtain

Fixed control fabric curtain -  structure

  • steel profile: load bearing and pressing
  • incombustible fabric
  • bottom balast


Ask for an offer

Information

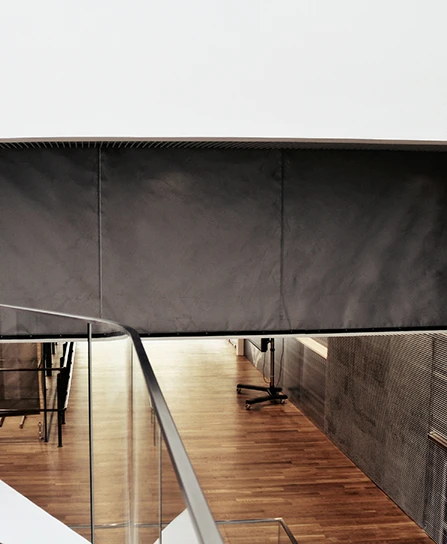

  Separation of smoke zones



Separated smoke zones stop the spread of smoke in passageways, staircases, stairs and hold the smoke in a room adjacent to the evacuation route. Correct arrangement of smoke curtains in the facility allows the smoke to be directed towards other system devices - smoke vents.
 Smoke flow optimisation
       and gas redirection into smoke vents



Proper placement of smoke curtains in a building makes it possible
to direct the smoke towards other elements of the system, i.e. smoke vents.
 Non-standard options



» installation passages in fixed curtains
» elements painted to any RAL colour
» service passage
» guides
 Application



Wide scope of shapes and sizes enable installation on warehouses,
public services buildings, shopping malls, commercial and sport objects.
Technical Catalogue
Product folder
OMM
CPR
DRAFT Declaration of performance

Ask for an offer
