mcr PROLIGHT ROOF HATCH

DESCRIPTION

wide scope of sizes:
– Type C (square): 80 x 80 cm ÷ 140 x 140 cm
– Type E (rectangular): 80 x 90 cm ÷ 120 x 150 cm
– Type NG-A (skew base): 100 x 100 cm ÷ 140 x 150 cm
hatches are delivered to construction site as a complete product, ready to install
RAL palette colour selection for roof hatche elements
product acquires CE mark, confirming compatibility with EN 1873 norm

DESIGN
Base

type: straight, skew
height: standard 30 - 50cm, 15 cm - 75 cm (additional option)
material: steel, aluminum
base’s thermal insulation: mineral wool of 20 mm thickness or PIR panel with 30 mm
possible to apply on existing plinth

Filling

multi-chamber polycarbonate
domes: acrylic or solid polycarbonate
multivariable single and multi-layer filling

Ask for an offer

Lighting

Effective method of increasing natural light intensity in rooms and contribute to reducing total cost of energy.

Ventilation

Provides air supply and daily ventilation.

Roof access

Opening mechanism enables easy roof access.

Additional elements

» anti-burglar grid
» safety net
» overlay base N type
» safety net

Heat transfer

Product allows to achieve high heat transfer:

Urc ≥ 1,1 W/m²K.

Application

Wide scope of shapes and sizes enable
installation on warehouses, public
services buildings, shopping malls,
commercial and sport objects.

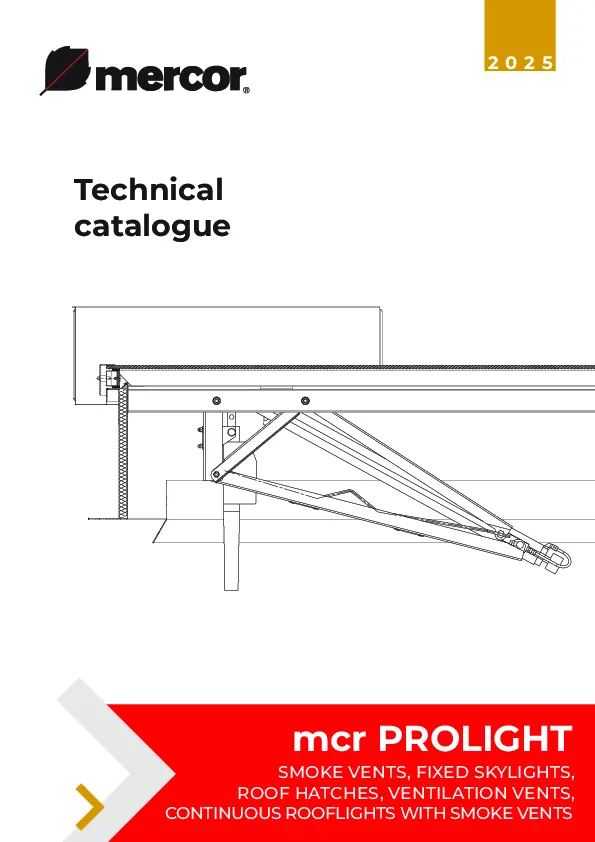

Technical Catalogue

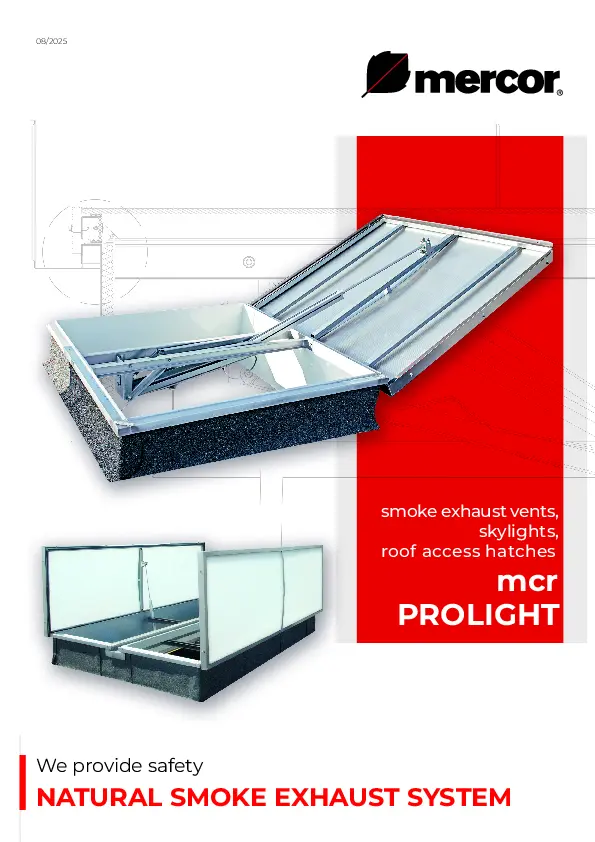

Product folder

OMM
