mcr PROLIGHT PYRAMID SKYLIGHTS

Description

width: 1200 – 5000 mm
bottom part of base has a circumferential flange of standard width 70 mm
or installing on the roof structure
skylights structure made of aluminum profiles
of shape ensuring water run-off
skylights glazing made of multi-chamber polycarbonate,
available in various thicknesses and colors
RAL palette color selection for skylights elements
CE marked skylights according to EN 14963
fire performance for external fire, class B_ROOF(t1) as per EN 13501-5+A1

More

Design
Base

type: straight, ridge, roof, overlay, broken in the ridge
height: 30 cm – 70 cm
material: steel, aluminum
prepared insulation of 50 mm thickness (possible modification)
possible to apply on existing plinth

Filling

multi-chamber polycarbonate
multivariable single and multi-layer filling

Ask for an offer

Lighting

Effective method of increasing natural
light intensity in rooms and contribute
to reducing total cost of energy.

Heat transfer

Product allows to achieve high heat transfer:

Urc ≥ 0,95 W/m²K.

Non-standard solutions

Please contact us to consult
together on the project.

Available version with ventilation vent.

more

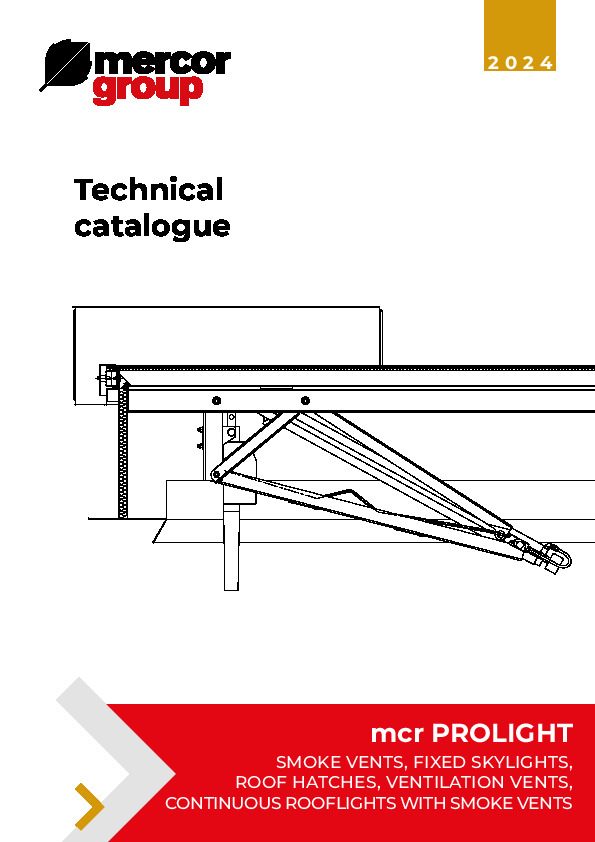

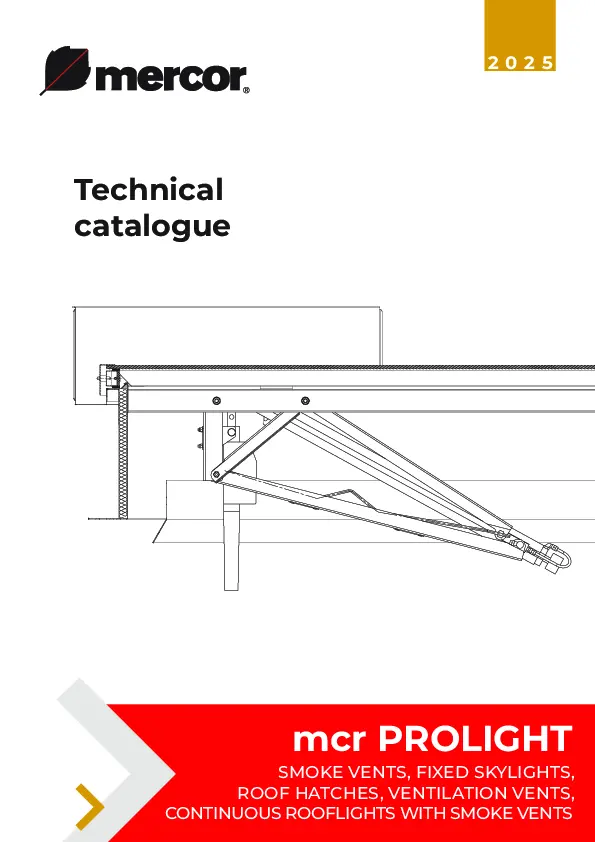

Technical Catalogue

Product folder
