mcr PROLIGHT FIXED SKYLIGHTS

DESCRIPTION

wide scope of skylight sizes:
– Type C (square): 80 x 80 cm ÷ 200 x 200 cm
– Type E (rectangular): 80 x 90 cm ÷ 195 x 300 cm
– Type NG-A (skew base): 100 x 100 cm ÷ 200 x 300 cm
skylights are delivered as a complete product, ready to install
RAL palette color selection for skylight elements
product certified according to PN-EN 1873
resistance to external fire, B_ROOF(t1) class according to EN 13501-5 (optional)

DESIGN
Base

type: straight, skew, overlay
height: standard 30 cm - 50 cm (straight),
16 cm - 70 cm (C/E) 30 - 70cm (NG-A) (additional option)
material: PVC, steel, aluminum
base’s thermal insulation: mineral wool of 20 mm thickness or PIR panel with 30 mm
possible to apply on existing plinth

Filling

multi-chamber polycarbonate
domes: acrylic or solid polycarbonate
multivariable single and multi-layer filling

Ask for an offer

Lighting

Effective method of increasing natural light intensity in rooms and contribute to reducing total cost of energy.

Heat transfer

Product allows to achieve high heat transfer:

Urc ≥ 1,1 W/m²K.

Additional elements

» safety net
» limit switch
» anti-burglar grid
» overlay base N type

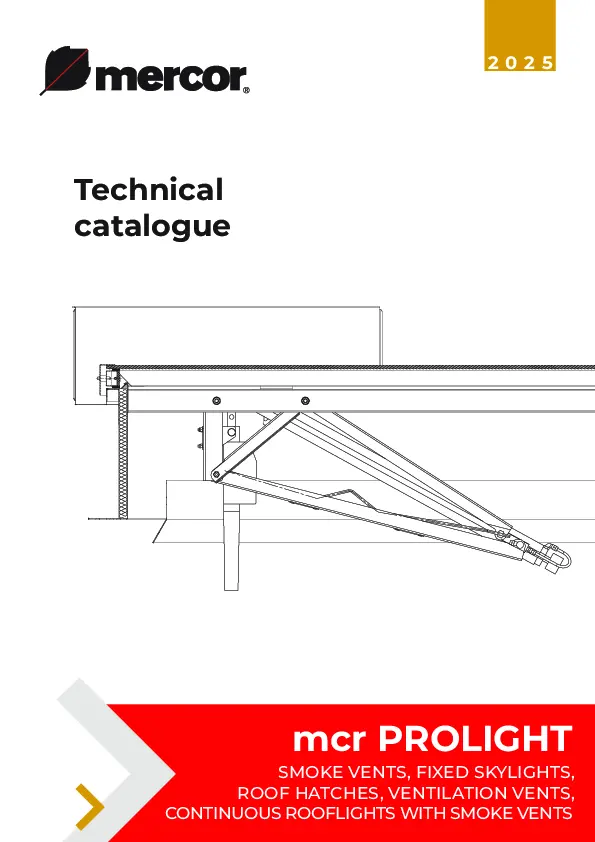

Technical Catalogue

Product folder

EPD ITB | Environmental product declaration
