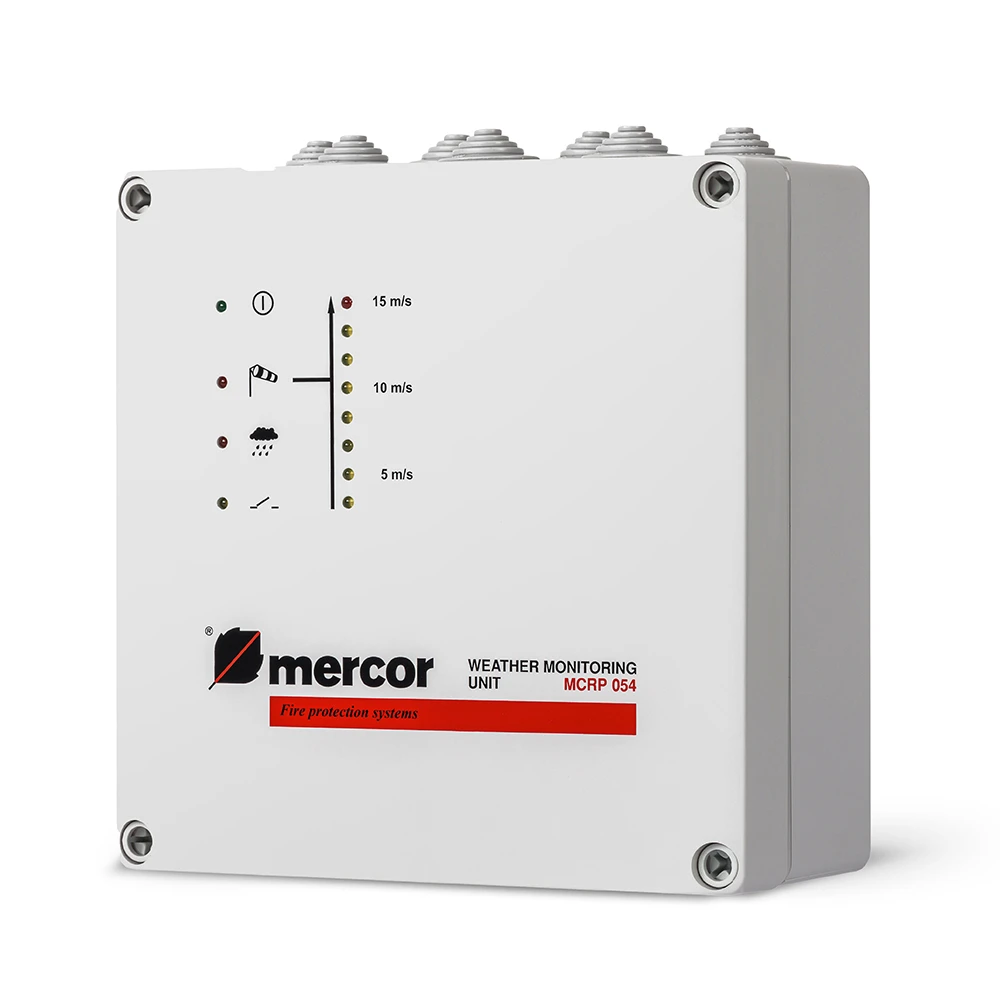

mcr P054 WEATHER CONTROL UNIT

The control unit is used to control the operation of vent actuators or ventilation windows, which should be closed in case of rain or wind. The device can be connected to smoke exhaust control units, ventilation control devices or electric drives powered with 230 V~.

4 changeover contacts, which are activated in the event of rain, wind or power failure.
The value of rain and wind intensity that triggers the alarm is defined by the user,
and the additional input of the vents leaf opening sensor enables optical control
of the devices status.

Ask for an offer

Status indication:

230 V~ supply - green diode
“wind” alarm - red diode
“rain” alarm - red diode
“vent open” indication - yellow diode
wind speed indication - light scale:
7 yellow and 1 red diode (red for wind speed above 15 m/s).

Dimensions: 180 x 180 x 75 mm

Additional equipment:

KE 2a Expansion Module:
Control contactor for extending the mcr P054 weather control unit
to more than four independent control groups, which will be closed
simultaneously during rain and wind.

control voltage 230 V~, volt-free contact 5 A / 230 V~
case made of thermoplastic, gray RAL 7035,
control contactor with six contacts used to extend the weather
control unit by five independent groups.

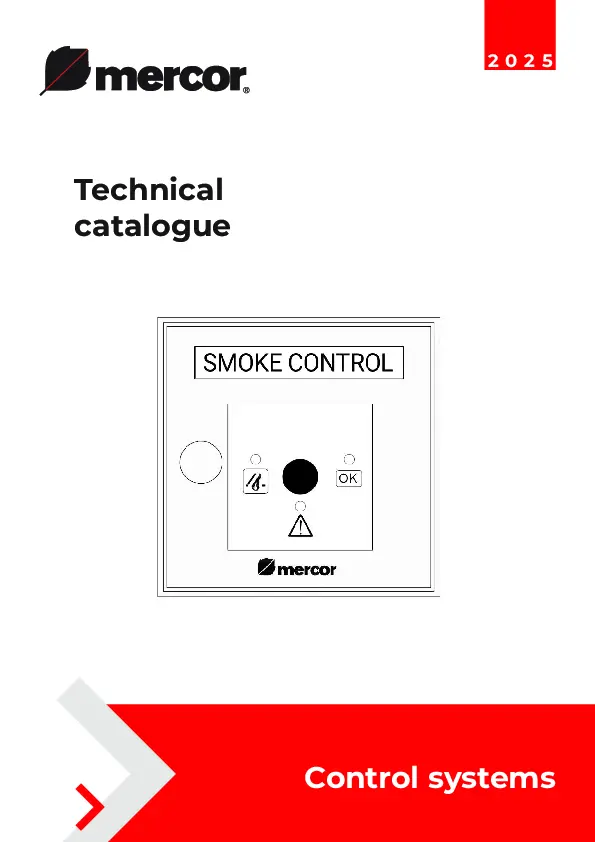

Technical catalogue

OMM

EU Declaration of conformity
