mcr FEN C Impulse Smoke Exhaust Jet Fan

Fire resistance class: F400 – 400°C / 120 min

Fire resistance class: F300 – 300°C / 60 min

Fan classified according to EN 13501-4

Performance properties in accordance with EN 12101-3

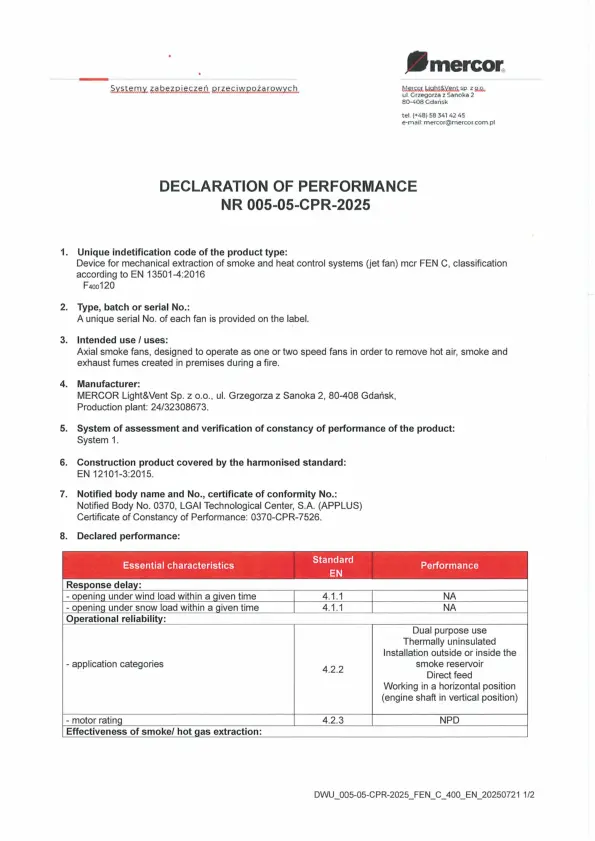

CSWU: 0370-CPR-7526



Ask for an offer

Information

The mcr FEN C (F400 and F300) jet impulse smoke extraction fan is designed for single or two-speed operation for conveying and extracting hot smoke and heat in buildings during a fire. The device is intended for indoor use in a horizontal position. Thanks to its design, the fan directs air or smoke in a specific direction, imparting the appropriate flow velocity, enabling precise smoke extraction from designated spaces.

Additional information:

  • Operation in the smoke reservoir
  • Low device height – 352 mm
  • Galvanized steel sheet housing

Technical data:



  • Dimensions: D500; 750; 1000 [mm]
  • Protection rating: IP 54/55
  • Nominal power: 0.2 kW – 2.2 kW
  • Rotational speed: 1500 rpm
  • Operating mode: unidirectional
  • Execution type: single-speed, two-speed
