mcr EXI-F - HYBRID SMOKE PREVENTION SYSTEM FOR EVACUATION ROUTES
mcr EXi-F system includes:
- mcr Omega power and control unit
- air supply units with ventilation equipment
- differential pressure transducers (digital and analogue)
- additional elements (manual control panel, air supply switching system, in-duct smoke sensors, bleed dampers )
Configuration and quantity of individual system components is dependent on the requirements of fire scenario, specifics of the building, and the design of its staircase, elevator shaft, or other protected space.
MoreKey details
National Technical Assessment ITB-KOT-2021/1788 edition 2

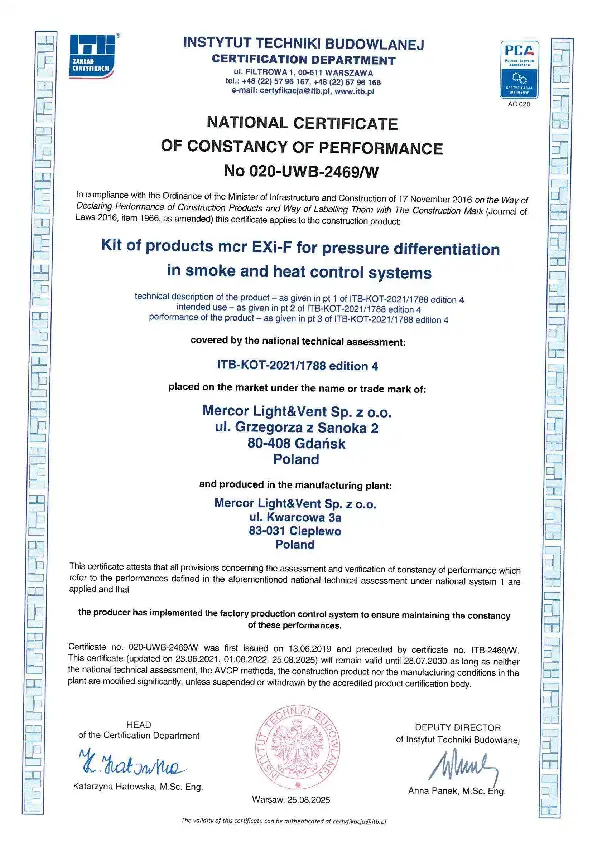

National Certificate of Constancy of Performance 020-UWB-2469W
Domestic declaration of performance HW/02/2017
Features
Protection from smoking of vertical evacuation routes is an important element of the entire fire safety system of the building. mcr EXi-F overpressure smoking prevention system installed in staircases contributes to the safety of building users. The system comprises appropriately designed air supply units working with intelligent automatics (mcr Omega units, pressure transducers, inverters) that prevent penetration of smoke to the protected zone by generating increased pressure.
Information
mcr EXi-F system includes:
- mcr Omega power and control unit
- air supply units with ventilation equipment
- differential pressure transducers (digital and analogue)
- additional elements (manual control panel, air supply switching system, in-duct smoke sensors, bleed dampers )
Configuration and quantity of individual system components is dependent on the requirements of fire scenario, specifics of the building, and the design of its staircase, elevator shaft, or other protected space.
FEATURES
- combined electronic and mechanical system features
- integrated internal mechanism for system action adaptation speeds up its activation in the building
- digital or analogue communication in the system
- intuitive operation - ease of designing the system and choosing devices
- various mounting methods
APPLICATION
- PUBLIC BUILDINGS
- COMMERCIAL BUILDINGS
- RESIDENTIAL BUILDINGS
ADDITIONAL DESCRIPTION
Choosing mcr EXi-F system allows the investor to obtain significant reductions of requirements contained in the "Technical conditions for buildings and their location", including:
- lowering of fire resistance class of building
- extension of permissible fire zones
- extension of evacuation routes
- series of types available: 100-1S, 100-2S, 90-1S, 90-2S, 80-1S, 71-1S, 71-2S, 63-1S
- air supply units making: box housing
- units installation type: vertical or horizontal
- units installation location: outdoor or indoor
- units capacity up to 72 000 m3/h
- compression up to 850 Pa
Detailed technical data concerning devices for constructing overpressure systems are available in the technical catalogue.
